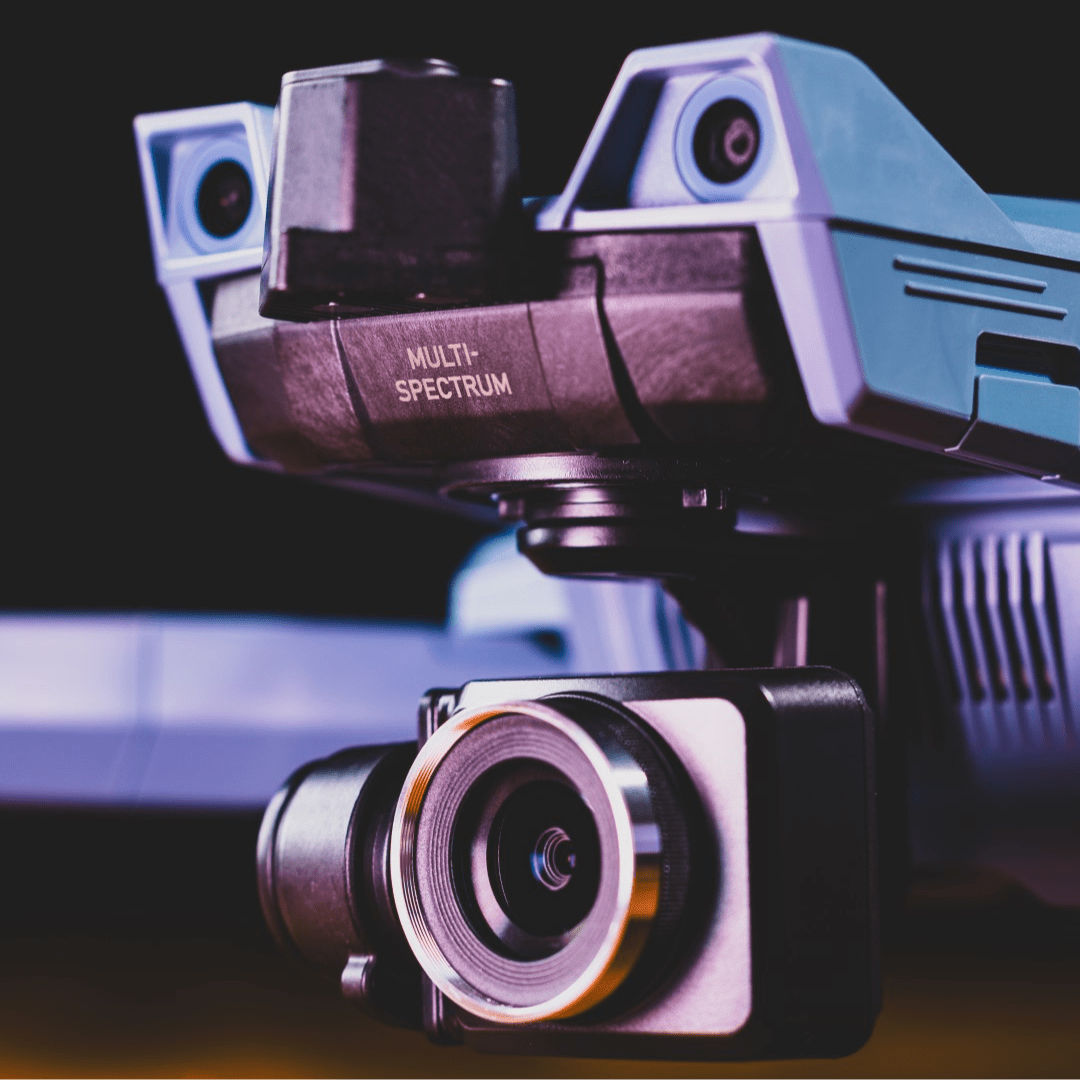

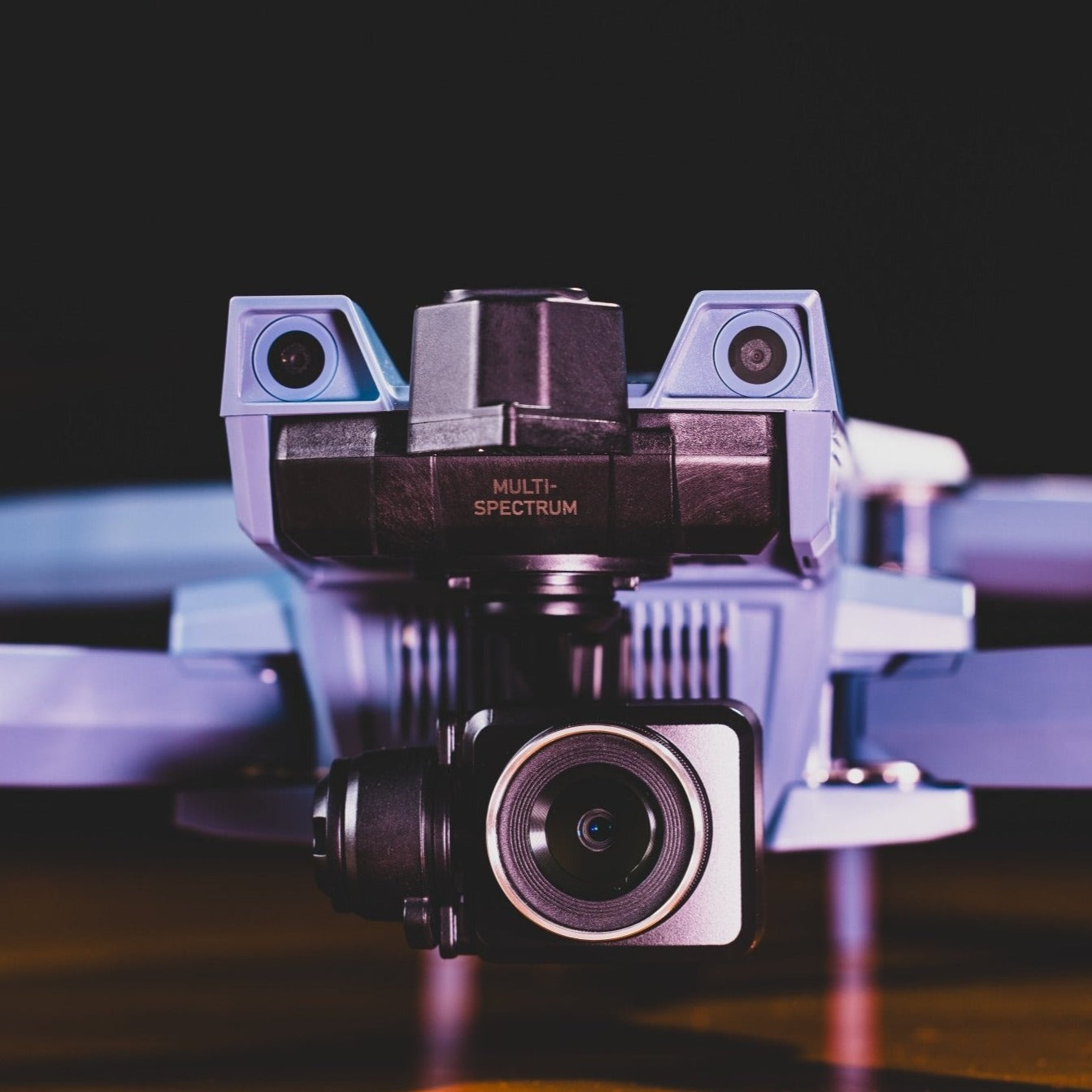

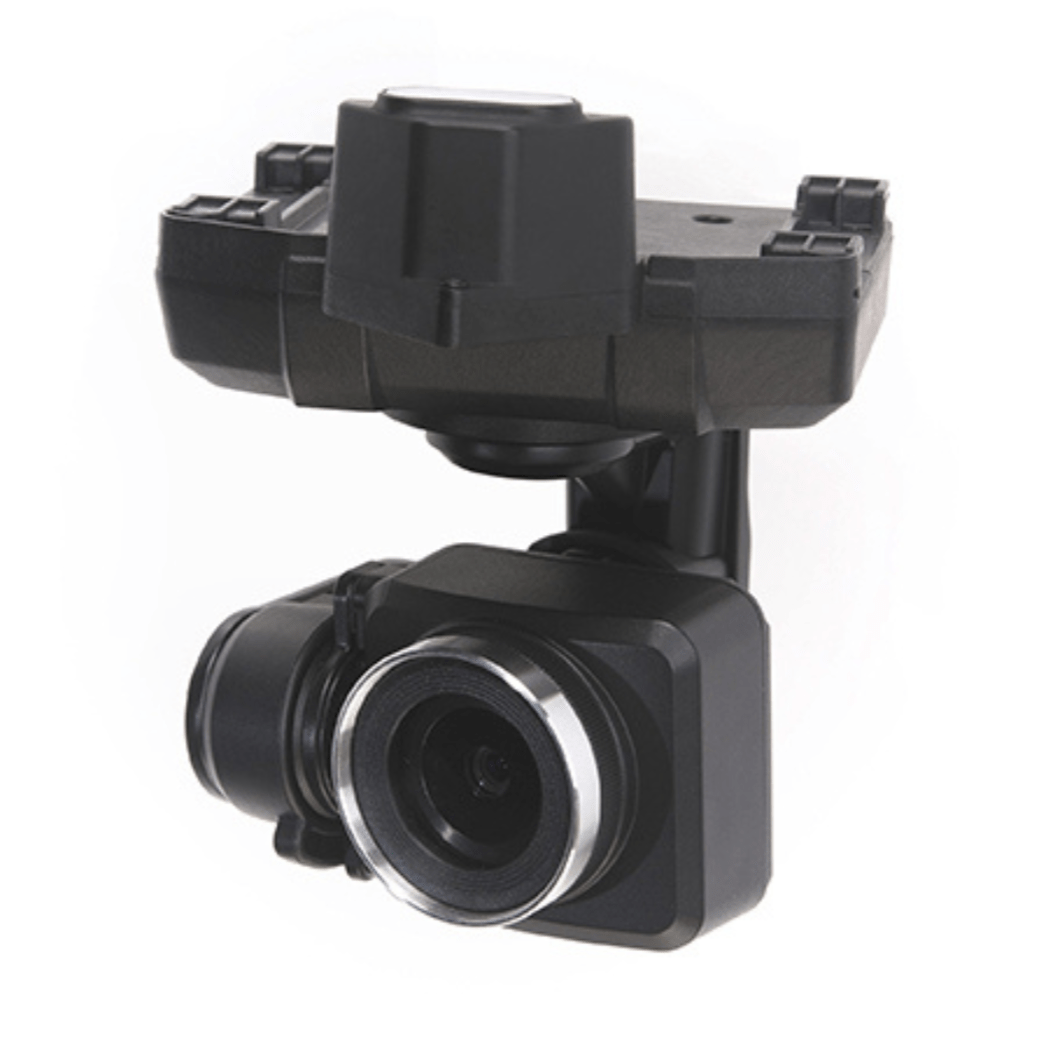

ACSL SOTEN Multispectral Camera - Built for Precision, Powered by Security
The ACSL SOTEN Multispectral Camera is a professional-grade payload engineered for agriculture, environmental monitoring, and field research missions. Purpose-built for seamless integration with the NDAA-compliant ACSL SOTEN drone, it delivers high-resolution multispectral data that enables precise analysis, deeper understanding, and confident decision-making from above.
Features:
- Captures 550nm, 680nm, and 850nm wavelengths for NDVI and vegetation index analysis
- 20MP sensor delivers high-resolution multispectral imagery
- Mechanical shutter ensures motion-free, crisp image capture
- Swappable via SOTEN's one-touch payload system-no tools needed
- Seamless integration with all ACSL SOTEN drones
- Supports mission-specific adaptation in real-time field scenarios
- NDAA-compliant and ISO15408-certified for secure operations
Tailored Imaging for Smarter Management
With spectral sensitivity at 550nm, 680nm, and 850nm, this payload delivers detailed vegetation health analysis, anomaly detection, and precision resource planning. A 20MP sensor with a mechanical shutter ensures sharp, dependable imagery, while SOTEN’s one-touch camera swap system provides full flexibility to adapt instantly in dynamic field conditions.
The ACSL SOTEN Multispectral Camera - Engineered for professionals who require reliable spectral data and mission versatility in a secure ecosystem.
Compatibility
ACSL SOTEN
In the Box
1 - ACSL SOTEN Multispectral Camera
Specifications
-
Resolution: 20 MP
-
Sensor Size: 1 inch
-
Shutter: Mechanical
-
Field of View: H64°, V44°, D73°
-
Equivalent Focal Length: 28 mm
-
Aperture: F2.8 - F11
-
Still Images: TIFF
-
Acquisition Wavelength (NDVI mode): 550nm, 660nm, 850nm
-
Filter Size: Diameter: 30.5mm, Thickness: 1mm, Weight: 4.4g
-
Recording Media: microSD UHS speed class: ≥ U3 or V30
-
Security: Encrypted data can be recorded on recording media. Encryption can be enabled/disabled
