ACSL SAMO | Swappable Thermal Payload for SOTEN

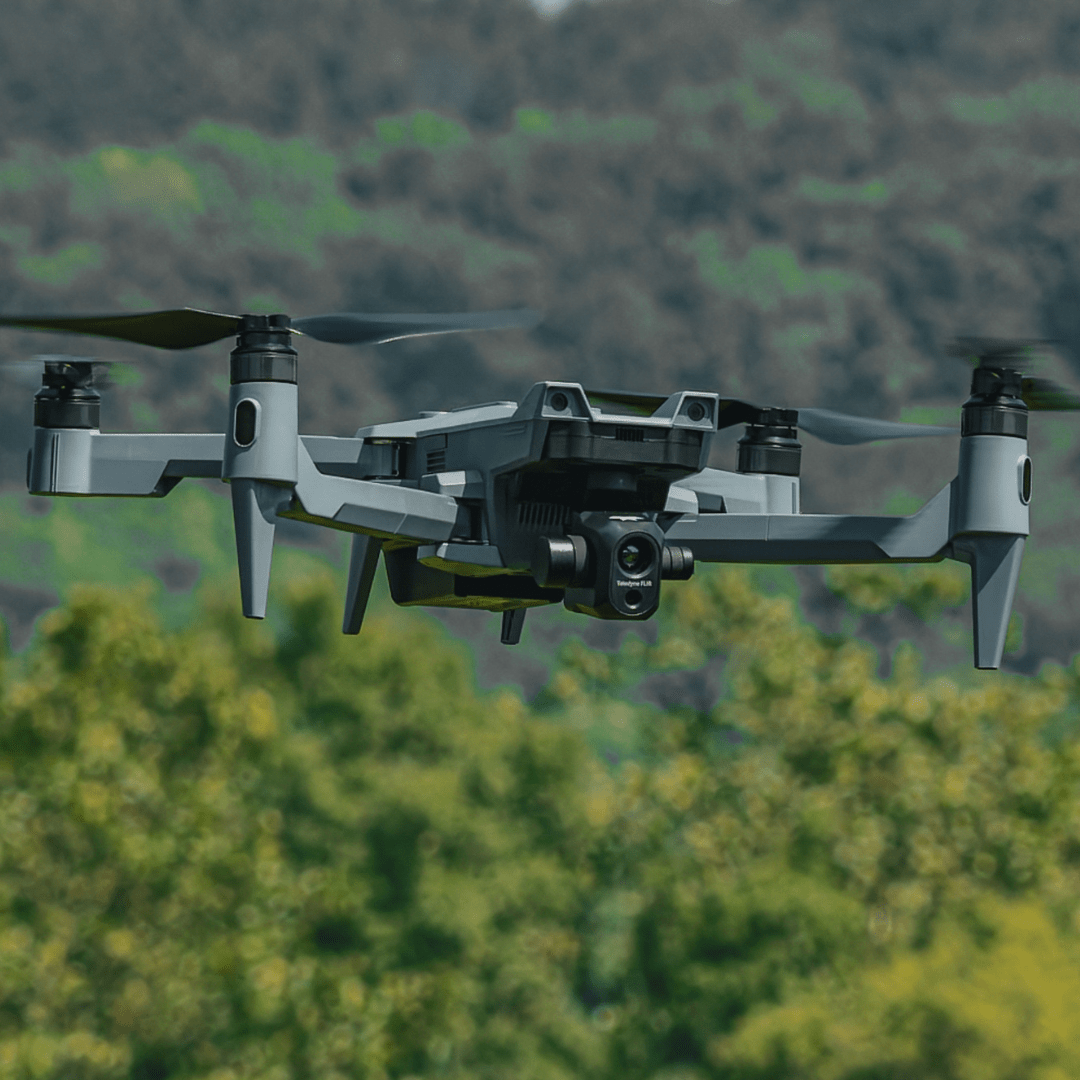

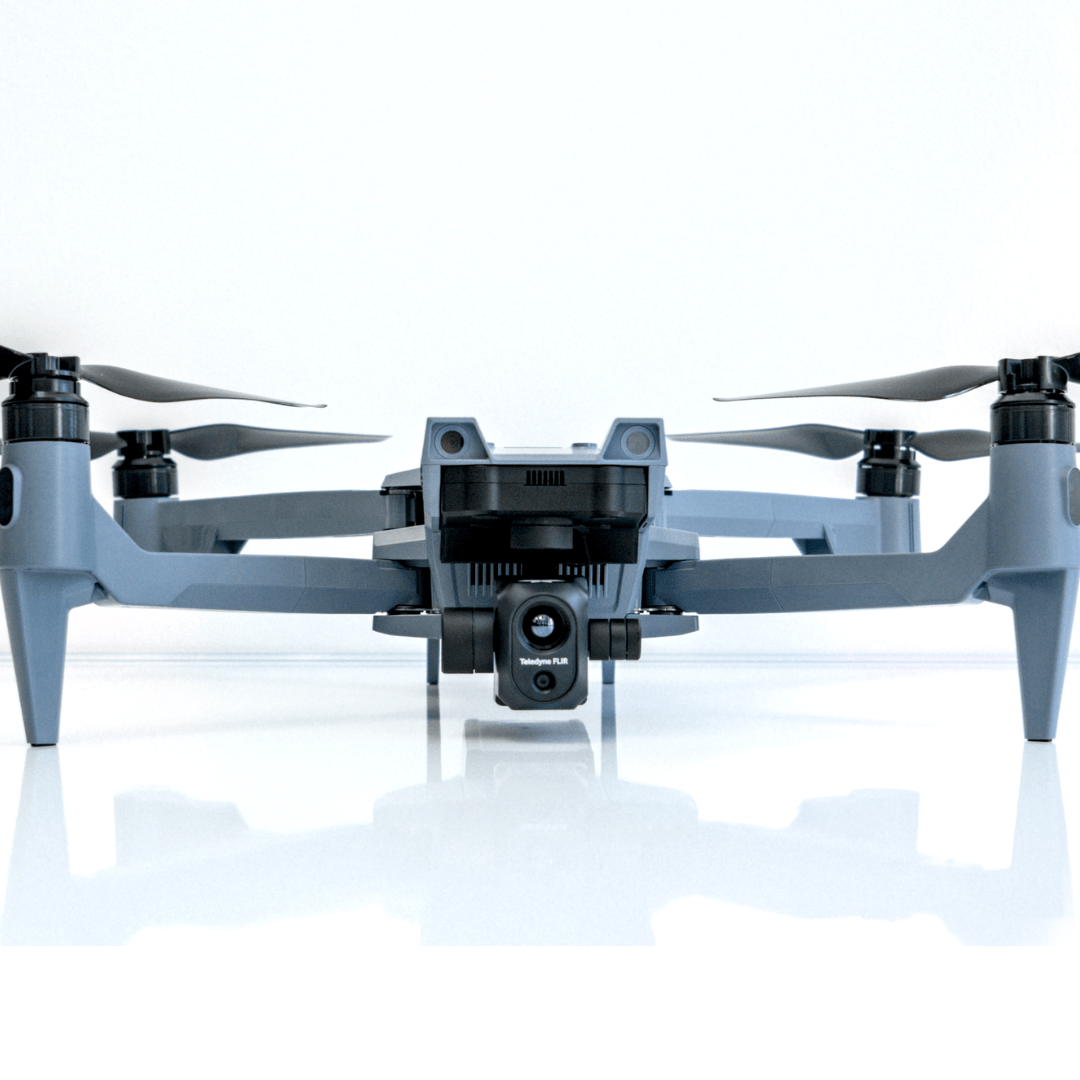

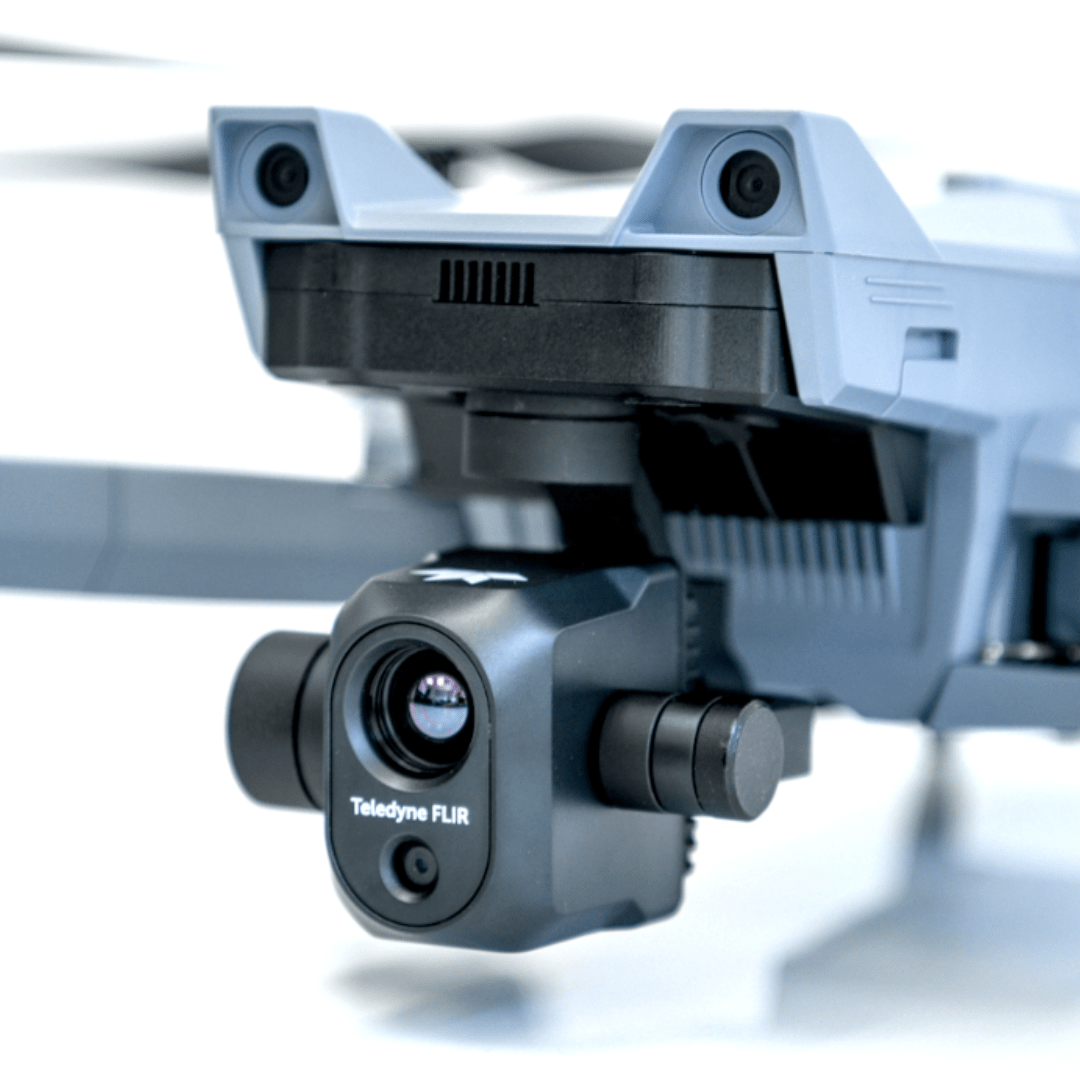

The ACSL SAMO is an NDAA-compliant, swappable thermal payload purpose-built for the ACSL SOTEN drone. At its core is the ITAR-free Teledyne FLIR OEM Hadron™ 640R module, pairing a radiometric 640×512 Boson® thermal camera with a 64MP visible sensor for clear, context-rich imaging.
Recent upgrades include a powerful 20× zoom capability, with MSX® (Multi-Spectral Dynamic Imaging) compatibility coming soon. MSX technology overlays visible edge detail onto thermal imagery, delivering sharper definition and greater situational awareness in every mission.
Mission-Ready, SOTEN-Integrated
Compact and rugged with IP54 protection, SAMO weighs just ~56 g and integrates seamlessly with the TAITEN controller and TAKEOFF ground station software, while SAMO’s one-touch mount makes payload swaps fast between missions, ensuring dependable performance in public safety, inspection, and field operations.
Features:
-
Dual-Sensor Module: Radiometric 640 × 512 Boson® thermal + 64 MP visible
-
Zoom & Fusion: 20× optical zoom (visible) and planned MSX® thermal-visible fusion
-
NDAA & ITAR-Free: Built around the Hadron™ 640R for secure deployments
-
Compact, Efficient: ≈56 g (≈1.98 oz), ~1.8 W typical power, IP54 module sealing
-
Optics & FOV: Thermal 32° HFOV (13.6 mm EFL); Visible 67° HFOV
-
SOTEN-Integrated: One-touch swappable payload; TAKEOFF app and TAITEN controller integration
The ACSL SOTEN SAMO - Secure, swappable payload delivering precision, versatility, and full-spectrum data.
Compatibility
ACSL SOTEN
In the Box

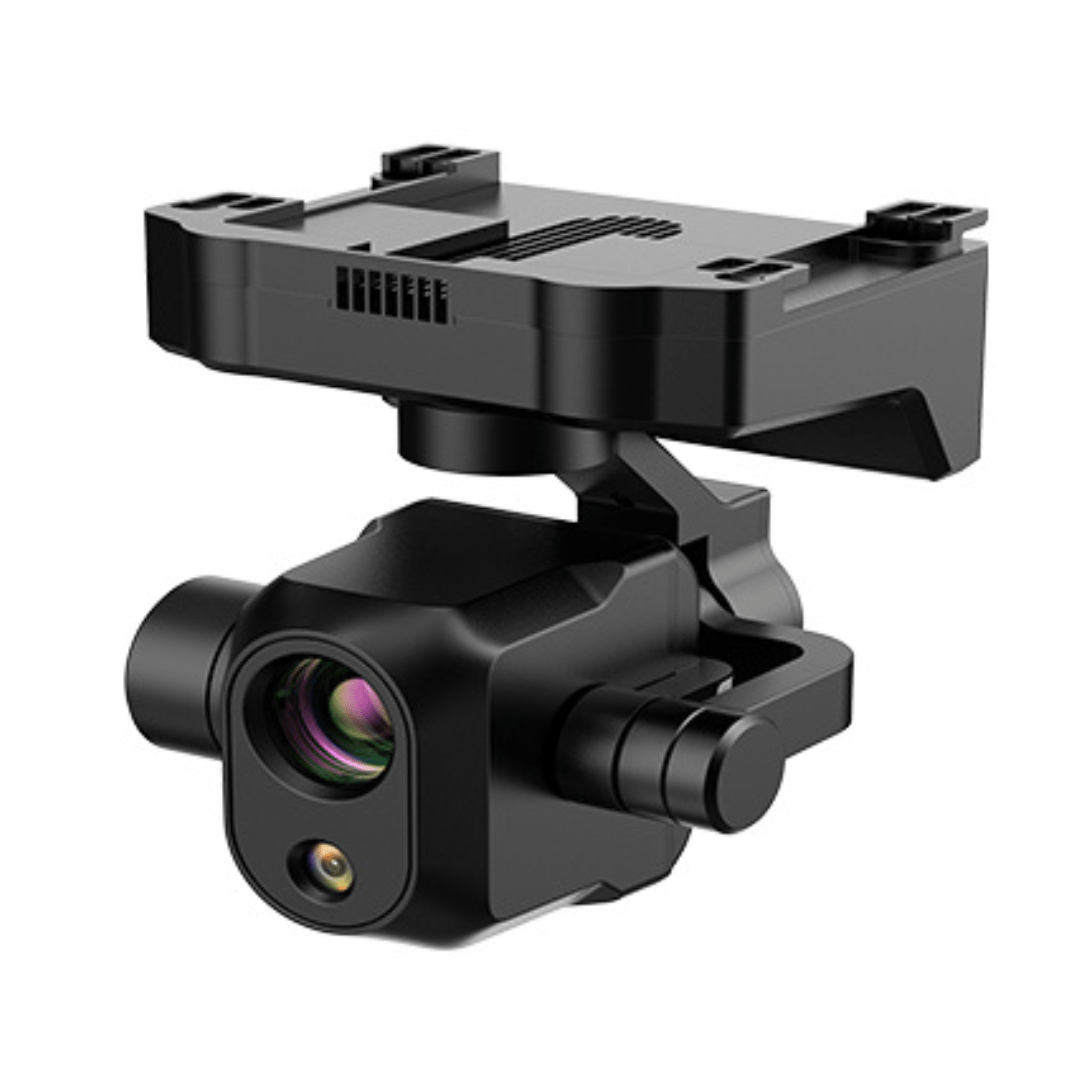

1 - ACSL SOTEN SAMO High Resolution Thermal Camera
Specifications
-
Thermal Sensor: FLIR Boson® 640 × 512 (radiometric)
-
Visible Sensor: 64 MP, 20× optical zoom
-
Fusion: MSX® Multi-Spectral Imaging (thermal + visible overlay)
-
FOV: Thermal ~32° HFOV / Visible ~67° HFOV
-
Accuracy: ±5 °C (0–100 °C)
-
Sensitivity: < 20 mK typical
-
Frame Rate: Up to 60 Hz (region dependent)
-
Weight: ~56 g
-
Protection: IP54, –20 °C to +60 °C operating range
-
Integration: One-touch swappable mount, TAITEN + TAKEOFF compatible
-
Compliance: NDAA-compliant, ITAR-free
